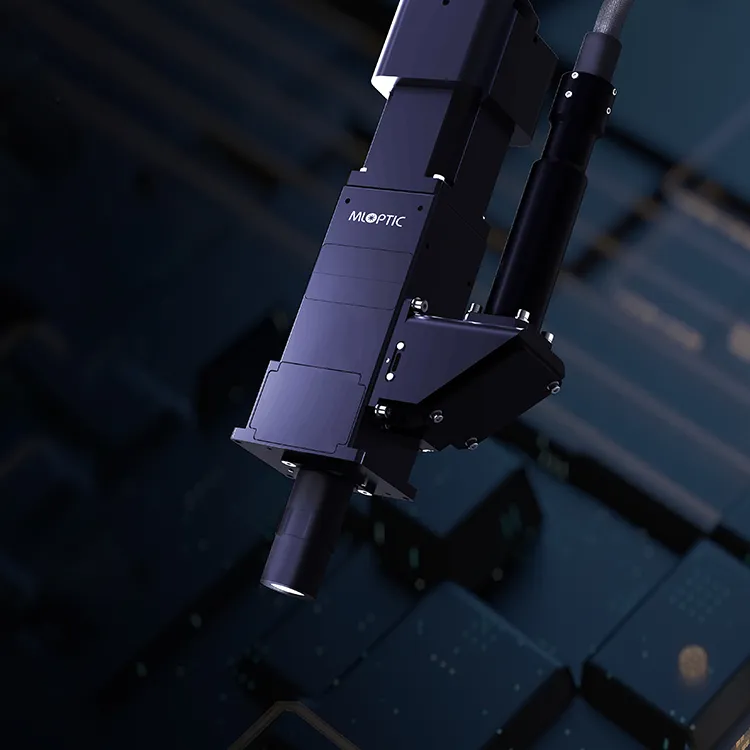

AOI Microscope Systems
Custom Microscopy Solutions for Automated Optical Inspection
ML Group provides high-performance AOI microscope systems based on advanced core microscopy technologies.
Designed for seamless integration into Automated Optical Inspection (AOI) equipment, our custom systems support a wide range of fields of view (FOV) and magnification levels, making them ideal for precision inspection across industries such as electronics, semiconductors, and manufacturing quality control.
AOI Microscope Systems Application Scenarios
We work closely with your engineering and application teams to understand your inspection goals and design challenges. Our collaborative approach ensures the final system is tailored to deliver optimal performance, whether you’re inspecting microelectronics, surface defects, solder joints, or high-precision components.
- Alignment with your AOI system architecture
- Field-optimised optics for specific resolution and contrast needs
- Adaptable configurations for various substrates and materials
Engineering and Technical Support for AOI Microscope Systems
From initial concept through to full production, ML Group provides end-to-end design engineering for AOI microscope systems. Our support includes:
| Microscope Body | Model | Microscope |
| Camera Installation Method | Vertical/Horizontal/Both channels | |
| Focal length (Tube Lens) | 200mm/300mm/Others | |
| Observation Image | Bright field,Upright | |
| Illumination System | Koehler illumination with fibre LED source (high-quality telecentric illumination) | |
| Working Wavelength Range | UV/VIS/NIR | |
| Objectives | Model | Standard and Customer Objectives |
| M Plan APO | Refer to "MLOptic Microscope Objective Brochure" for Standard Objectives Custom Objectives tailored to user application | |
| M Plan APO HR | ||
| M Plan APO IR | ||
| M Plan APO NUV | ||
| Objectives | Camera Installation Method | Customised to use case |
| Focal length (Tube Lens) | Customised to use case | |
| Observation Image | BF，DF，DIC | |
| Illumination System | Customised to use case |
Scalable and Customised Manufacturing
We tailor our manufacturing processes to meet the specific needs of your AOI project. This includes:
- Precision fabrication of optical and mechanical components
- Application-specific measurement and quality assurance processes
- Scalable production capabilities for pilot runs and volume manufacturing
With ML Group, you get a trusted partner that can deliver microscopy systems optimised for performance, quality, and integration.
Contact us today to discuss your AOI microscope system requirements.
