Aspheric Lenses
High-Precision Aspheric Optics for Enhanced Imaging and Compact Optical Design

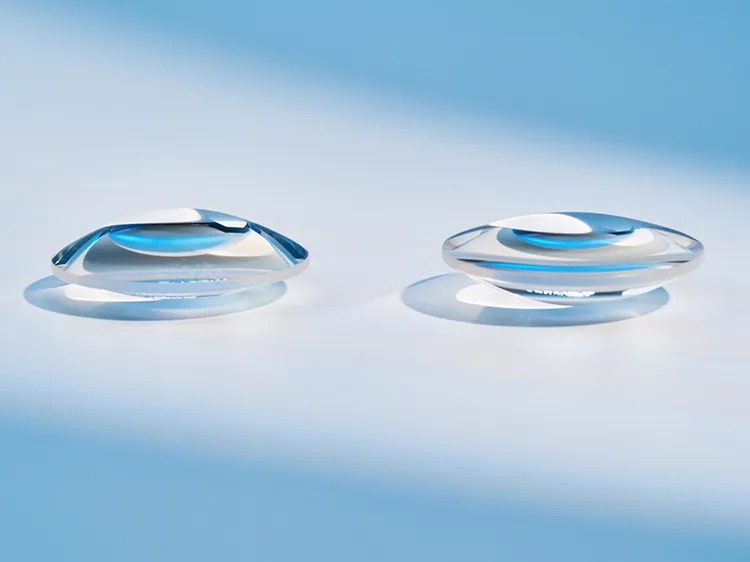

MLPhotonic specialises in the manufacturing of aspheric lenses.
These lenses are widely used in various optical systems and allow for improved performance with a reduced number of optical elements.
Our aspheric lenses are made from glass and quartz materials (typically using materials from SCHOTT, OHARA, or CDGM). In addition, we offer aspheric lenses of IR materials (such as ZnS, ZnSe, Ge, Si) and metal mirrors.
Classifications:
- Single-sided aspheric lenses
- Bi-aspheric lenses
- Off-axis aspheric lenses
For glass and quartz materials:
The possible diameter range is 10mm to 300mm, with a minimum concave radius of 50mm.
For IR materials:
The possible diameter range is 2mm to 400mm.
Metrology & Quality Assurance:
ML Photonic offers optical metrology, including surface profilometry and interferometry to verify specifications are achieved for fabricated optics. We perform inspections on all optical components during the manufacturing process and provide inspection reports.
Contact Measurement: Taylor Hobson Pgi Optics Profiler
- Maximum measurable aperture: 300mm
Non-contact Measurement: Lupho Scan
- Fast non-spherical optical non-contact 3D interferometric scanning, with a maximum measurable diameter of 260mm and a measurement accuracy of ±50nm
Interferometer Measurement: 6-inch Aperture Stitching Interferometer (SSI)
- Maximum measurable aperture: 300mm.
CGH Inspection: Custom designed for different lenses
Manufacturing Capability:
- Diameter: 5.0mm to 300.0mm
- Minimum Radius of Curvature: Convex 10mm; Concave 50mm
- Materials: Optical glass, quartz glass, Germanium (Ge), Silicon (Si), Zinc Sulfide (ZnS), Zinc Selenide (ZnSe)
Manufacturing Tolerances:
- Diameter Tolerance: +0.00 / -0.02mm
- Surface Quality: 20/10
- Radius of Curvature (Convex): 10mm – ∞
- Radius of Curvature (Concave): 50mm – ∞
- PV (Peak-to-Valley): λ/10 @ 633nm
